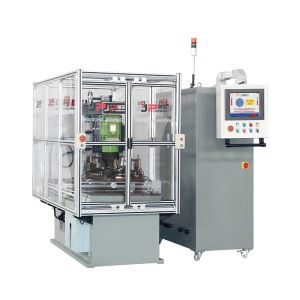

CAM Clutch rho ntsug ntsuas kho lus cav tov
Hauj lwm ntau lawm
•Manual loading thiab unloading
• tshuaj ntsuam 15-nti kov
•Advanced ntsuas xab software
Kev ntsuas •automatic, milling tsis zoo no feem thiab kho lus, kev kawm tsis zoo no feem
•Rigidity qauv tsim, muaj ib cov lub neej siv ntev
Ntau yam ntawm cov ntaub ntawv
Automatc ntsug ntsuas kho lus cav A1LX20 yog tsim los qhia tshwj xeeb uas rau qhov tsis zoo no feem ntsuas uas zoo li tus disc yam nyob rau hauv dav hlau ib,
Automatc ntsug ntsuas kho lus cav A1LX20 nrog ib lub chaw nres tsheb yog ib lub siab heev tab balancing tshuab cov shanghai jianping, tus kheej ntsuas cov neeg ua hauj lwm yog yuav nrog xab, indexing, competely milling kho lus thiab kuaj, A1LX20 yog zoo xaiv yuav mass tsim lub sij hawm luv luv voj, efficiency siab thiab raug siab
Hluav taws xob xab System (Option)
Tsis ntau lawm
Cov ntaub ntawv Rotors | |
| Max pawg ntawm Workpiece(kg) | 35 |
| Max txoj kab uas hla ntawm Workpiece (hli) | 450 |
| Ntsuas Parameter Unit | |
| Ntxaiv ceev (r/min) | 800 |
Lub cev muaj zog Power(kw) | 1.5 |
| Min Achievable Residual Unbalance nyiaj (emar) | 5g· hli/kg |
| Unbalance tus kho lus | |
Milling ntau Depth(mm) | Nyob ntawm rotor |
| Milling ntau Width(mm) | Nyob ntawm rotor |
| Tej Speed(r/min) | 900 |
| Tej ntxaiv qoj Power(kw) | 2.2 |
| Milling ntau Angle(degree) | 0-90 |
| Milling Cutter Range(mm) | 60-125 |
| Tshuab Parameter | |
| Power(kw) | 6 |
| Weight(ton) | 1.5 |
| Dimensions(mm) | 900*1600*1800 |
Cim npe nrov: CAM Clutch rho ntsug ntsuas kho lus cav tov, rho ntsuas tshuab
